Bag Filling and Sealing
Réf : BFL 852 | 854 | Fabricant : Plümat

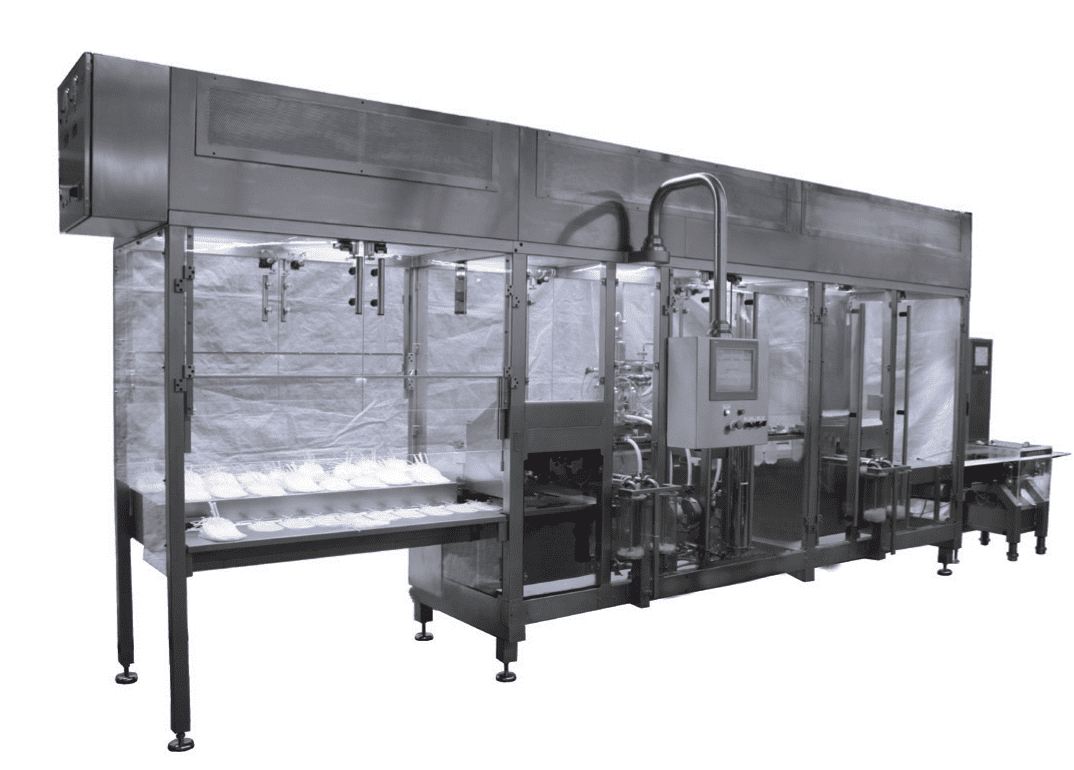

The BFL filling and sealing machine is designed to process flexible empty bags.
The bags are manually fed into the machine. All further procedures, including stopper infeed (tube bag) or cap infeed (hard port bag) are running automatically. On top of that it is possible to equip the machine with the Laminar Flow-Unit. PLÜMAT compact design in addition to its easy handling and quick cleanability (CIP/SIP) turn the BFL 852 | 854 into ideal machine for use in pharmaceutical industry.
Principales caractéristiques
| Output* |
2200 Bags/h | 4200 Bags/h |
| Bag matérial |
Multi-layer film |
| Formats** | 100 ml | 250 ml | 500 ml | 1000 ml |
* BFL 852 | BFL 854 based on 250 ml bag with 2 tubes
** more formats on demand
Spécifications
| BFL 852 | BFL 854 | |
| Power Supply | 230 V/400 V, 50 Hz; 3 Ph; appr. 12,0 kW | 230 V/400 V, 50 Hz; 3 Ph; appr. 20,0 kW |
| Power consumption | appr. 6,0 kWh | appr. 10,0 kWh |
| Compressed air | appr. 6 bar | appr. 6 bar |
| Compressed air consumption | appr. 1800 Nl/min | appr. 3300 Nl/min |
| Cooling water | n.n. | n.n. |
| Machine weight | appr. 2400 kg | appr. 3600 kg |
| Dimensions (L x W x H) | appr. 7500 x 2400 x 2040 mm | appr. 9500 x 2400 x 2040 mm |
