Semiautomatic Bag Filler
Réf : PLÜMATEX-F 014 BF | Fabricant : Plümat

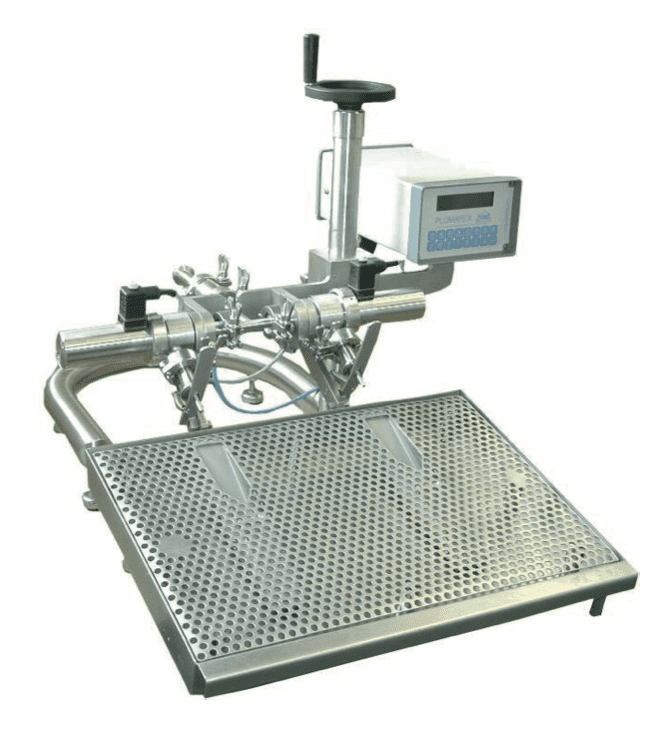

The PLÜMATEX-F 014 is a table top bag filler with one or two filling nozzles and a vertical height adjustment. A foot pedal operation initiates the filling cycle.
The specific filling data (e.g. volume) is entered, controlled and adjusted through the Siemens control device. The filling system is suitable for inline sterilization (CIP/SIP) up to max. 125° C.
Principales caractéristiques
Output 600 | 800 Bags/h (one | two filling positions; 500 ml)
Container IV bags (PP | PE | PVC | EVA | EVOH)
Formats* 50 ml up to 5000 ml
*steplessly adjustable
Spécifications
| PLÜMATEX-F 014-1 BF | PLÜMATEX-F 014-2 BF | |
| Power supply | 230 V, 50 Hz; 0,1 kW | 230 V, 50 Hz; 0,1 kW |
| Consumption power | appr. 0,02 kWh | appr. 0,02 kWh |
| Filling system | turbine / massflow (optional) | turbine / massflow (optional) |
| Product connection | tri-clamp | tri-clamp |
| Machine weight | appr. 30 kg | appr. 38 kg |
| Dimensions (L x W x H) | appr. 980 x 750 x 700 mm | appr. 980 x 750 x 700 mm |
| Materials | All product contact parts are made from stainless steel 1.4404/1.4571, all other parts are made from stainless steel 1.4301. |
All product contact parts are made from stainless steel 1.4404/1.4571, all other parts are made from stainless steel 1.4301. |
